Description

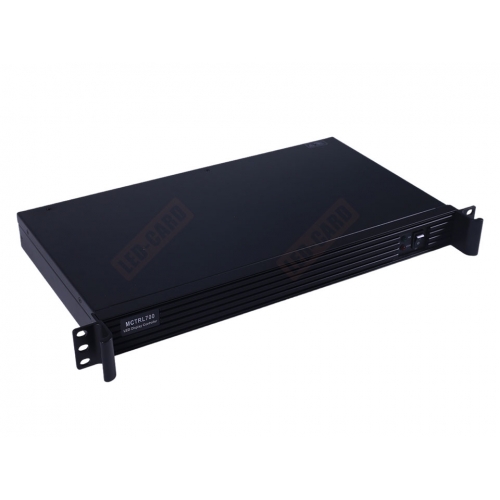

Novastar MCTRL700 LED Display Controller is a powerful device that supports 1x DVI input, 1x HDMI input, 1x audio input, and 6x Ethernet outputs. With a maximum loading capacity of 1920×1200@60Hz.
the MCTRL700 is perfect for large-scale displays in rental and fixed applications, such as concerts, live events, security monitoring centers,  Games, and sports arenas.
The MCTRL700 communicates with PCs via a Type-B USB port, and can be cascaded with other MCTRL700 units via the UART port for even more expansive displays.

DVI Input：1x SL-DVI input connector
Resolutions up to 1920×1200@60Hz
Custom resolutions supported
Maximum width: 3840 (3840×600@60Hz)
Maximum height: 3840 (548×3840@60Hz)
HDCP 1.4 compliant
DOES NOT support interlaced signal input.
HDMI Input： 1x HDMI 1.3 input connector
Resolutions up to 1920×1200@60Hz
Custom resolutions supported
Maximum width: 3840 (3840×600@60Hz)
Maximum height: 3840 (548×3840@60Hz)
HDCP1.4 compliant
DOES NOT support interlaced signal input.
AUDIO Input：Audio input connector

1~6 Output：6x RJ45 Gigabit Ethernet ports
Capacity per port up to 650,000 pixels
Redundancy between Ethernet ports supported
HDMI Output: 1x HDMI 1.3 output connector for cascading
DVI Output: 1x SL-DVI output connector for cascading
Control USB： Type-B USB 2.0 port to connect to PC
UART IN/OUT Input and output ports to cascade devices.
Up to 20 devices can be cascaded.
Power: AC 100V-240V~50/60Hz
