Description

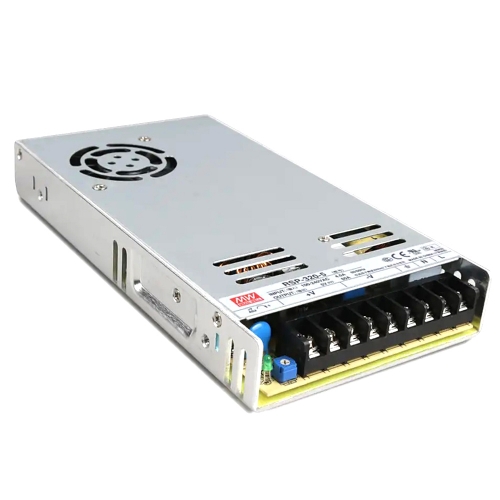

MEANWell RSP-320-5 Switching supply Features :
5V 60A 300W
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan with fan speed control function
1U low profile 30mm
Optional conformal coating models (RSP-320- CC) â–¡
LED indicator for power on
2 years warranty
Case:806 Size:215×115×30mm
AC input voltage range———88-132VAC/ 176-264VAC selected by switch
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start Œ40A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation full load————————≤0.5%
Output over load protection——-110%-150% hiccup mode auto-recovery
Rise，hold up time——————–50mS 20mS at full load typical
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40C @100%-+60 @60% load
Storage temperature—– -20-+85C 20%~95%RH(non condensing)
Safety standards——Design refer to GB4943 UL60950-1,EN60950-1
EMC standards——- Design refer to GB9254 EN55022 class A
Cooling method———————Forced air cooing by built-in DC fan
Additional information
| Weight | 1 kg |
|---|
